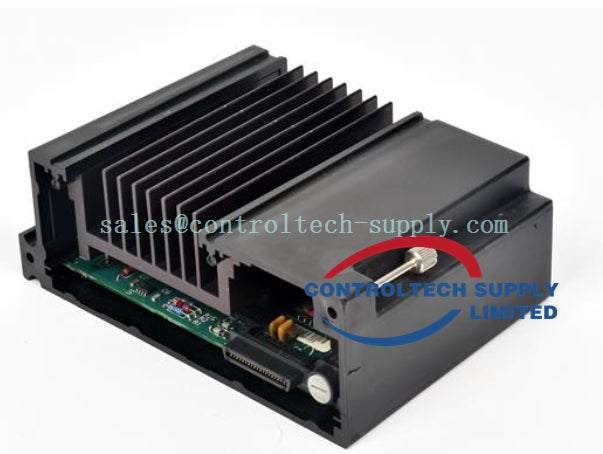

Bently Nevada 1701/10 (1034549-10) Vibration Monitoring Module

Product Description

• The Bently Nevada 1701/10 (1034549-10) is a vibration monitoring module designed for use in machinery protection and condition monitoring systems.

• It is part of Bently Nevada’s trusted 1701 Series, providing continuous vibration measurement, alarm processing, and system interface functions.

• The module ensures machinery safety by detecting abnormal vibration levels and enabling early intervention to prevent failures.

• It is commonly used in turbines, compressors, pumps, and other rotating equipment.

Technical Specifications

• Model Number: 1701/10

• Part Number: 1034549-10

• Power Supply: 24 VDC nominal (typical operating range: 18 to 30 VDC)

• Input Channels: 2 independent dynamic signal inputs for vibration probes

• Input Type: Compatible with proximity probes, accelerometers, or velocity transducers

• Frequency Response: 0.5 Hz to 20 kHz (depending on transducer type)

• Measurement Range: Configurable for 0–20 mm (displacement) or ±50 g (acceleration)

• Signal Processing: RMS, peak, or true peak detection with programmable filtering

• Outputs:

• 4–20 mA proportional output per channel

• Relay outputs for alarm/trip conditions

• Alarms: Programmable alert and danger levels with latching/non-latching options

• Operating Temperature: –20 °C to +65 °C

• Mounting: DIN-rail or panel-mount enclosure

• Compliance: Meets API 670 machinery protection standard
