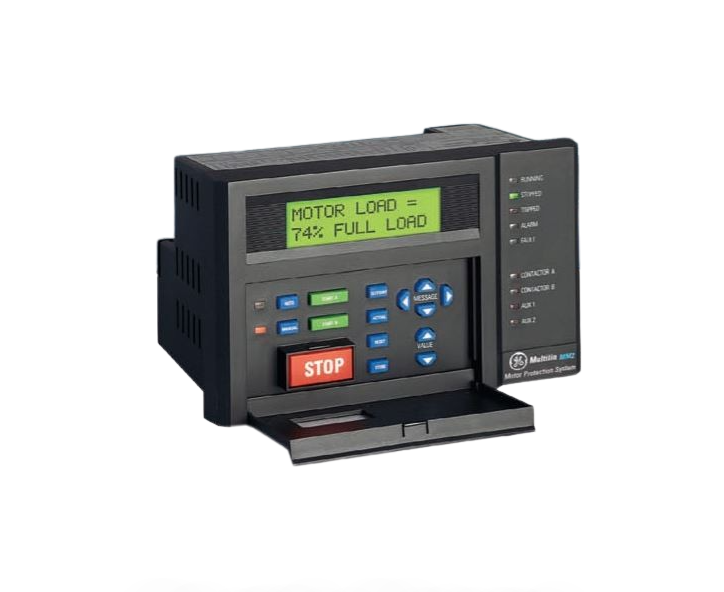

GE Multilin MMII-PD-1-2-240 Motor Manager II
GE Multilin MMII-PD-1-2-240 Motor Manager II
Manufacturer: GE Multilin
Product No.: MMII-PD-1-2-240
Product Type: Motor Manager II
Product Origin: USA
Payment: T/T
Weight: 1860g
Shipping port: Xiamen
Warranty: 12 months
Product Overview
The GE Multilin MMII-PD-1-2-240 is a compact, microprocessor-based Motor Manager II controller and protection relay designed for 240 VAC motor applications. It combines comprehensive motor protection, control, monitoring, and diagnostics into a single unit, making it suitable for industrial motor control centers, automated machinery, and critical process equipment. The unit includes a panel-mount LCD display and keypad interface for local configuration and status viewing, while also integrating with GE’s EnerVista software and communication protocols for remote monitoring and control. It safeguards motors against overload, phase loss, imbalance, and other electrical faults, and supports flexible I/O configurations for advanced control logic.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | MMII-PD-1-2-240 |
| Manufacturer | GE Multilin (General Electric) |
| Product Type | Motor Manager II Microprocessor-Based Motor Controller & Protection Relay |
| Control Voltage | 240 VAC, 50/60 Hz |
| Motor Support Range | Designed for low-voltage motors (up to ~20 HP typical) |
| Fuse Type/Rating | 0.5 A, 250 V fast-blow, high breaking capacity |
| Power Consumption | 25 VA maximum; 7 VA nominal |
| Single-Phase Accuracy | ±2 percentage points |
| Digital Inputs | 16 total – 6 fixed + 10 configurable, optically isolated |
| Digital Outputs | 4 total – 2 contactor outputs + 2 programmable outputs |
| Protection Functions | Overload, underload, phase loss, imbalance, short-circuit, stall/locked rotor, over/undervoltage, ground fault (varies by firmware/options) |
| Communication Interfaces | RS-485 with Modbus RTU support; optional Ethernet |
| Software Support | GE EnerVista configuration & diagnostics |
| Operating Temperature | –20 °C to +70 °C (typical industrial) |
| Storage Temperature | –40 °C to +85 °C |
| Cooling Method | Natural air convection |
| Mounting | Panel mount with display; optional DIN-rail capability |
| Dimensions (Approx.) | 8.3 × 5.625 × 5.8 in (211 × 143 × 147 mm) |
| Weight | ~4.1 lbs (~1.86 kg) |
| Display | LCD with keypad for local interaction |
| Certifications | Industrial ratings typical (varies by region and options) |
