Product Description
-
Part Number: IS400JPDHG1A
-
Manufacturer: General Electric (GE)
-
Series: Mark VIe
-
Function: High-Density Power Distribution Board
-
Input Voltage: 28 V DC
-
Output Voltage: 600 V, 13 A
-
Mounting Method: DIN-Rail
-
Operating Temperature: -30 to 65°C
-
Board Size: 6.25 in × 4.25 in
-
Availability: In Stock
-
Country of Origin: USA
Functional Description
-

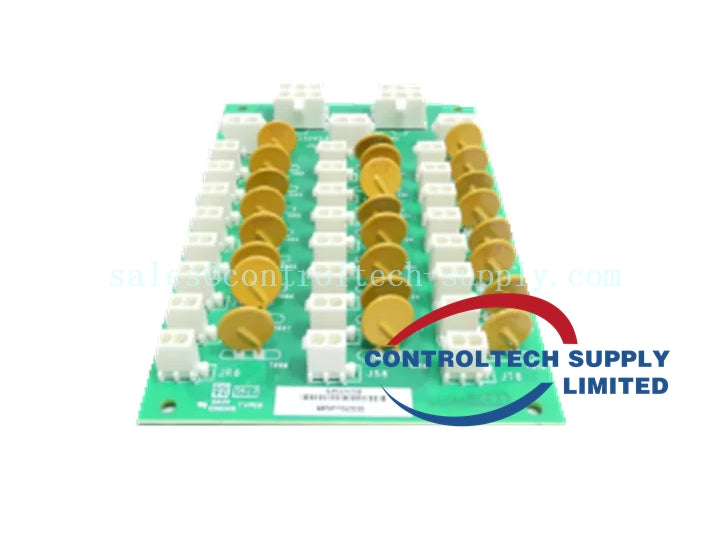

IS400JPDHG1A is a High-Density Power Distribution Board designed by GE for the Mark VIe distributed control system.
-
Provides 28 V DC power to up to 24 Mark VIe I/O packs and 3 Ethernet switches from a single 28 V DC supply.
-
Supports daisy-chain configuration, allowing additional JPDH boards to expand power distribution for systems requiring more than 24 I/O packs.
-
Each I/O pack connector includes positive temperature coefficient (PTC) fuse protection for circuit safety and thermal overload prevention.
-
Accepts 28 V DC input from the R, S, and T supply channels, distributing power across eight outputs per channel (R/S/T).
-
Provides three unprotected 28 V DC outputs dedicated to Ethernet switches for R, S, and T power channels.
-
Ensures reliable, high-density power distribution within industrial control environments typical of GE Mark VIe systems.
