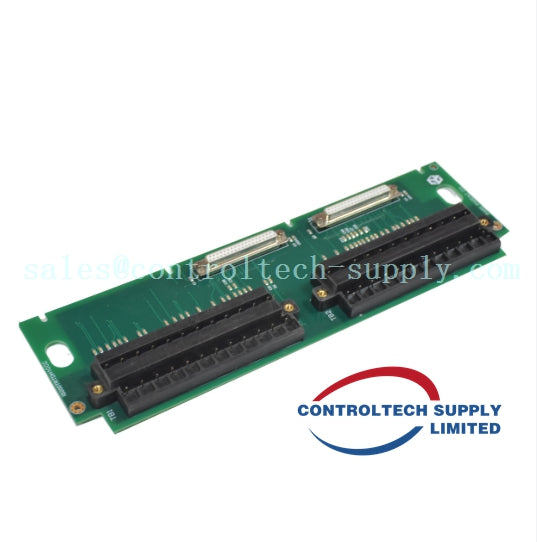

GE IS200TRTDH1CCC Resistance Temperature Detector (RTD)
GE IS200TRTDH1CCC Resistance Temperature Detector (RTD)
Manufacturer: GE
Product No.: IS200TRTDH1CCC
Product Type: Resistance Temperature Detector (RTD)
Product Origin: USA
Payment: T/T
Weight: 220g
Shipping port: Xiamen
Warranty: 12 months
Product Description
-
The IS200TRTDH1CCC is a Resistance Temperature Detector (RTD) input terminal board, part of GE’s Mark VI Speedtronic series.
-
It is used for precise temperature sensing in industrial control systems.
-
Provides multiple RTD inputs (three-wire RTDs) and interfaces via terminal blocks and cable connectors.
-
Includes noise suppression, limit checking, and fault detection features.
Technical Specifications
| Specification | Detail |
|---|---|
| Model Number | IS200TRTDH1CCC |
| Manufacturer | GE (General Electric) |
| Series | Mark VI (Speedtronic) |
| Product Type | RTD Input Terminal Board (Temperature Resistance Terminal Device) |
| Number of Channels | 8 channels |
| RTD Inputs Supported | Up to 16 three-wire RTDs wired to two barrier terminal blocks |
| Supported RTD Types | Platinum RTDs (10 Ω, 100 Ω, 200 Ω), Copper RTDs (10 Ω), Nickel RTDs (120 Ω) |
| Input Span | 0.3532 to 4.054 volts |
| Maximum Lead Resistance | 15 ohms (two-way cable resistance) |
| Operating Temperature Range | -30 °C to +65 °C |
| Technology / Construction | Surface mount board; two removable barrier terminal blocks; three 37-pin female cable connectors |
| Limit Checking / Fault Detection | Hardware high/low limits; software high/low system limits; chip ID fault detection |
| Physical Dimensions (approx) | 11.5 cm × 4.5 cm × 3.8 cm |
| Weight | ~0.22 kg |
