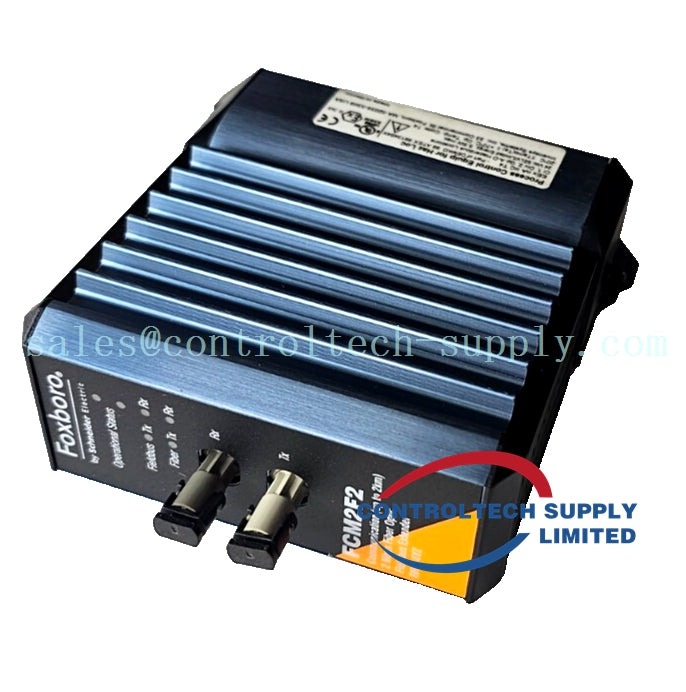

FOXBORO FCM2F2 RH914YZ Fieldbus Communication Module

Product Description

• The FOXBORO FCM2F2 RH914YZ is a fiber-optic Fieldbus Communication Module used in the Foxboro I/A Series Distributed Control System (DCS).

• It enables long-distance, high-integrity communication between remote I/O and central controllers using fiber optics, providing immunity to electromagnetic interference and lightning-induced surges.

• Designed for use with 200 Series baseplates, it supports both redundant and non-redundant configurations for mission-critical applications.

• The module is ideal for installations where electrical isolation and extended communication distances are essential.

Technical Specifications

• Model: FCM2F2

• Part Number: RH914YZ

• Communication Protocol: FOUNDATION™ Fieldbus over HDLC at 2 Mbps

• Fiber Type: Multimode, graded-index glass fiber

• Core/Cladding Size: 62.5 µm / 125 µm

• Numerical Aperture (NA): 0.275

• Maximum Fiber Distance: Up to 2 km (1.24 miles)

• Fiber Connectors: ST-type, duplex

• Power Supply Voltage: 24 VDC nominal, ±5%, –10%

• Power Consumption: Approximately 5 W

• Module Isolation: Fiber-optic isolation between field and controller sides

• Operating Temperature: –20 °C to +70 °C (–4 °F to +158 °F)

• Storage Temperature: –40 °C to +70 °C (–40 °F to +158 °F)

• Humidity: 5% to 95%, non-condensing

• Altitude Rating: Operational from –300 m to +3,000 m; storage up to 12,000 m

• Vibration Resistance: Up to 0.75 g, 5–200 Hz

• Dimensions: 102 mm (H) × 45 mm (W) × 104 mm (D)

• Weight: 284 g (10 oz)
