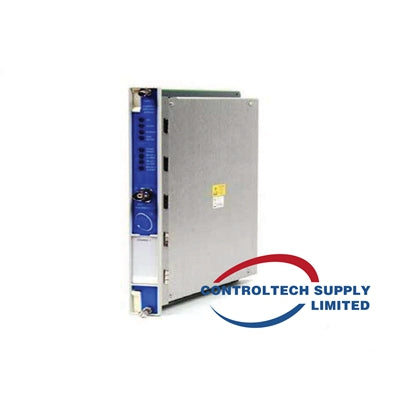

Bently Nevada 3500/40 125672-01 Proximitor Monitor Module

Product Description

• Product type: Proximitor Monitor Module

• Series: 3500/40M

• Channels: 4-channel monitor

• Function: Accepts input from proximity transducers and provides vibration/position measurements

• Application: Radial vibration, thrust position, differential expansion, eccentricity, and REBAM

• Alarm capability: User-programmable Alert and Danger setpoints per channel

• Configuration: Via 3500 Rack Configuration Software

• Mounting: Fits into 3500 rack system with internal terminations

• Compatibility: Works with Bently Nevada proximity probes and extension cables

• Origin: USA

• Warranty: Typically 1 year (varies by distributor)

Technical Specifications

• Input type: Proximity transducer signals (e.g., 3300 XL series)

• Signal conditioning: Converts raw signals into static values for monitoring

• Power supply: Powered via 3500 rack backplane

• Operating temperature: Typically -30°C to +65°C (varies by rack environment)

• Dimensions: Standard 3500 module size (approx. 241 mm × 24 mm × 241 mm)

• Weight: Approx. 0.9–1.2 kg (2–2.6 lbs)

• Vibration resistance: Meets API 670 and MIL-STD-810G standards

• Certifications: CSA, ATEX, CE, GOST, DNV (depending on system configuration)

• Redundancy: Supports TMR (Triple Modular Redundant) configurations
