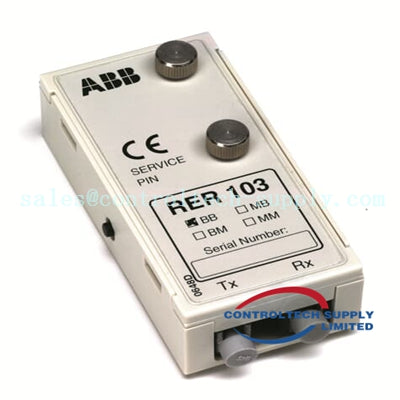

ABB Bus Connection Module RER 103

Descroption

This bus connection module converts incoming optical signals from the LON® /SPA bus to electrical RS 485 signals for the RE500 devices and vice versa. The module is plugged into the D-type subminiature connector on the rear plate of the host device. It can be used together with any RE500 device provided with a 9-pin D-type connector.

Scope

• The bus connection module RER 103 serves as an interface between RE_500 series devices and fibre-optic-based communication buses such as SPA, LON®, and IEC 60870-5-103.

• It connects via a D-type subminiature connector (9-pin) located on the rear panel of the host device.

• Applicable for use with any RE500 device that includes the required connector.

Product Benefits

• High immunity to electrical and electromagnetic interference due to the use of fibre-optic transmission.

• LON® protocol support ensures flexibility and adaptability to a wide range of industrial applications.

Product Features

• Converts incoming optical signals (from SPA, LON®, and IEC_103) to electrical RS-485 signals, and vice versa.

• Supports plug-and-play integration with RE_500 devices featuring a 9-pin D-type interface.
