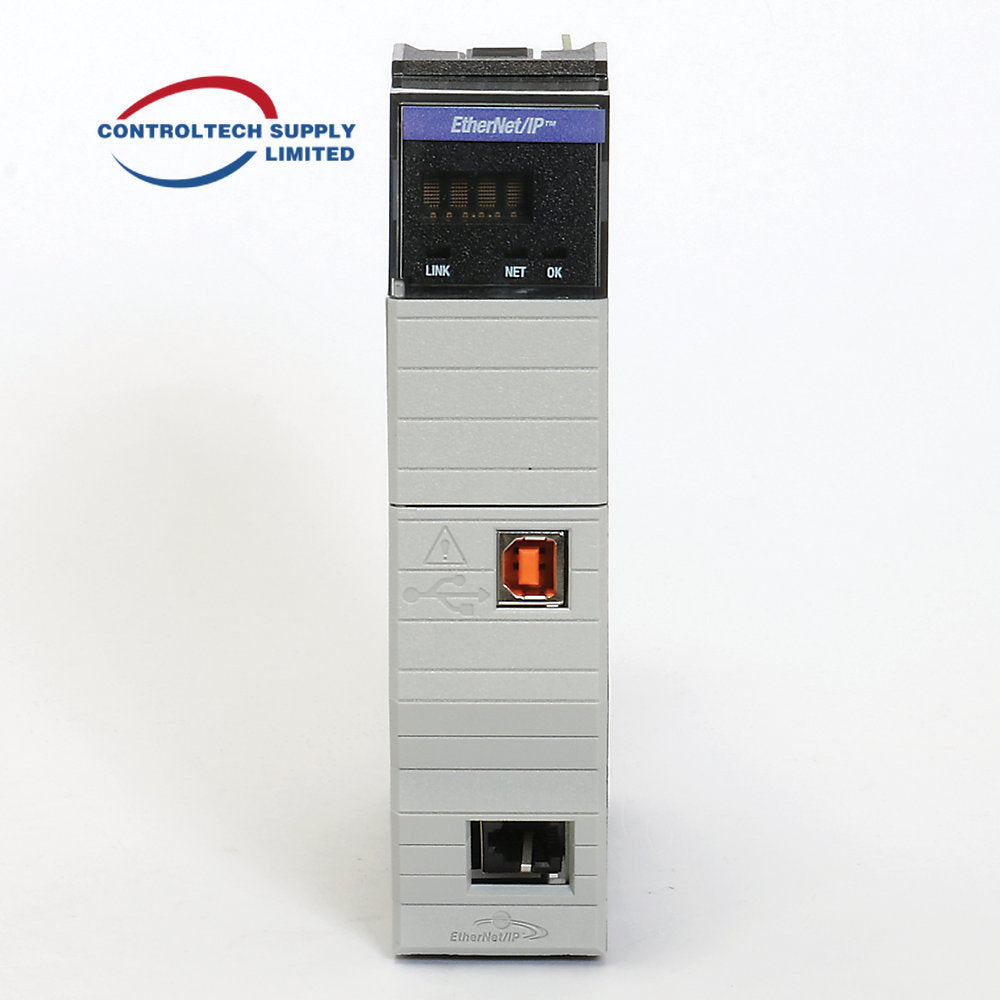

The Allen-Bradley 1756-EN2T/B is a ControlLogix EtherNet/IP Bridge Module with a communication speed of 10/100 Mbps and support for up to 128 TCP/IP connections.
Electrical Specifications:
- Optical Interface: No
- TCP/IP Support: Yes
- DeviceNet Support: No
- Other Bus Systems Support: No
- Redundancy: No
- IO Link Master: No
- DeviceNet Safety Support: No
- EtherNet/IP Support: Yes
- Power Dissipation: 5.1 W
- Thermal Dissipation: 17.4 BTU/h
- Enclosure Type Rating: None (open-style)
- Ethernet Ports: 1 Ethernet RJ45 Category 5
- CIP Unconnected Messages: 128 + 128 (backplane + Ethernet)
- Current Draw: 1 A @ 5.1V DC, 3 mA @ 24V DC
- Ethernet Cable: 802.3 compliant shielded or unshielded twisted pair
- Wiring Category: 2 - on Ethernet ports, 3 - on USB ports
- Communication Rate: 10/100 Mbps
- Max Connections Supported: TCP: 128, CIP: 256 (CIP connections can be used for all explicit or implicit applications)
Isolation and Protocols:
- Isolation Voltage: 30V (continuous), Basic Insulation Type, Ethernet to Backplane, USB to Backplane, and USB to Ethernet
- Supporting Protocols: No support for LON, ASI, PROFIBUS, CAN, INTERBUS, KNX, Modbus, Data-Highway, SUCONET, SERCOS, INTERBUS-Safety, AS-Interface Safety at Work, Foundation Fieldbus, PROFINET CBA, PROFINET IO, PROFIsafe, SafetyBUS p
- Radio Standards: No support for Bluetooth, Wi-Fi 802.11, GPRS, GSM, UMTS
Mechanical Specifications:
- Slot Width: 1
- ATEX Temperature Code: T4
- Module Location: Chassis based, any slot
Environmental Specifications:
- Max Surrounding Air Temperature: 60 °C
- Storage Temperature: -40 °C
- Emissions: CISPR 11: Class A
- Vibration: 2 G @ 10...500 Hz
- ESD Immunity: 6 kV contact discharges, 8 kV air discharges
- EFT/B Immunity: ±3 kV at 5 kHz on Ethernet ports
- Relative Humidity: 5...95% noncondensing
- Shock: Operating: 30 G, Nonoperating: 30 G
- Conducted RF Immunity: 10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz
- Surge Transient Immunity: ±2 kV line-earth (CM) on Ethernet ports
- Operating Temperature: 0 °C <Ta <60 °C (32 °F <Ta <140 °F)
- Radiated RF Immunity: 10V/m with 1 kHz sine-wave 80% AM from 80...2000 MHz, 10V/m with 200 Hz 50% Pulse 100% AM @ 900 MHz, 10V/m with 200 Hz 50% Pulse 100% AM @ 1890 MHz, 3V/m with 1 kHz sine-wave 80% AM from 2000...6000 MHz
Certification:
- North American Temperature Code: T4A
- IECEx Temperature Code: T4
