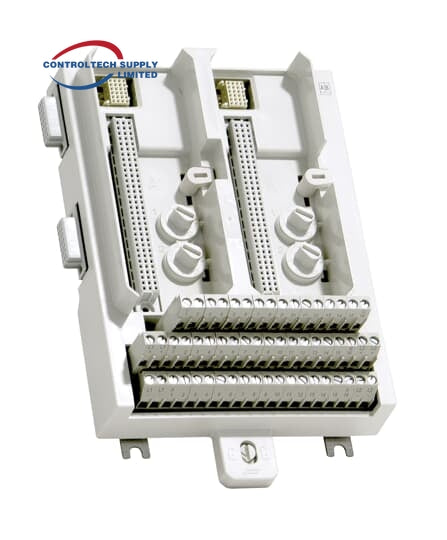

The TU842 MTU is a redundant terminal block designed for use with various I/O modules. Here are some key details and features:
General Info
- Article Number: 3BSE020850R1
- Type: Redundant
- Connection: Terminal block
- Channels: 16
- Voltage: 50 V
- Mounting: Horizontal (55 º)
- Use with I/O: AI843, AO845, AO845A, DI840, DI880, DO840, DO880, and DP840
- Process Connections: 56 up to 16 I/O channels (2 terminals per channel), 4 Process power, 20 Process power (0 V)
- Single/Redundant I/O: Redundant
Detailed Data
- Maximum Current per I/O Channel: 3 A
- Maximum Current Process Connection: 10 A
- Acceptable Wire Sizes:
- Solid: 0.2 - 4 mm²
- Stranded: 0.2 - 2.5 mm², 24 - 12 AWG
- Recommended Torque: 0.5 - 0.6 Nm
- Stripping Length: 7 mm
- Dielectric Test Voltage: 500 V a.c.
Environment and Certification
- CE Mark: Yes
- Electrical Safety: IEC 61131-2, UL 61010-1, UL 61010-2-201
- Hazardous Location: C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2
- Marine Certification: ABS, BV, DNV-GL, LR
- Protection Rating: IP20 according to IEC 60529
- Corrosive Atmosphere: ISA-S71.04 G3
- Climatic Operating Conditions: 0 to +55 °C (Storage -40 to +70 °C), RH=5 to 95% no condensation, IEC/EN 61131-2
- Pollution Degree: Degree 2, IEC 60664-1
- Mechanical Operating Conditions: IEC/EN 61131-2
- EMC: EN 61000-6-4, EN 61000-6-2
- Overvoltage Categories: IEC/EN 60664-1, EN 50178
- Equipment Class: Class I according to IEC 61140 (earth protected)
- RoHS Compliance: EN 50581:2012
- WEEE Compliance: DIRECTIVE/2012/19/EU
Dimensions
- Width: 131 mm (5.16”) including connector, 124 mm (4.88”) edge to edge installed
- Depth: 64 mm (2.52”) including terminals
- Height: 186.5 mm (7.34”) including locking device
- Weight: 0.66 kg (1.3 lbs.)
Additional Information
The TU842 MTU can accommodate up to 16 I/O channels and 2+2 process voltage connections. Each channel has two I/O connections and one ZP connection. The maximum rated voltage is 50 V, and the maximum rated current is 3 A per channel.
The MTU serves to distribute the two ModuleBuses to each I/O module and to the next MTU. It also generates the correct address for the I/O modules by shifting the outgoing position signals to the next MTU.
The MTU can be easily mounted on a standard DIN rail and features a mechanical latch that securely locks it in place. Four mechanical keys, two for each I/O module, are used to configure the MTU for different types of I/O modules, offering a total of 36 different configurations.
Features and Benefits
- Complete installation of I/O modules using 3-wire connections and field power distribution.
- Supports up to 16 channels of field signals and process power connections.
- Provides connections to two ModuleBuses and I/O modules.
- Mechanical keying prevents the insertion of the wrong I/O module.
- Secure latching device for DIN rail grounding.
- DIN rail mounting for easy installation.
This TU842 MTU is designed to facilitate the efficient and reliable installation of I/O modules in various industrial applications.
