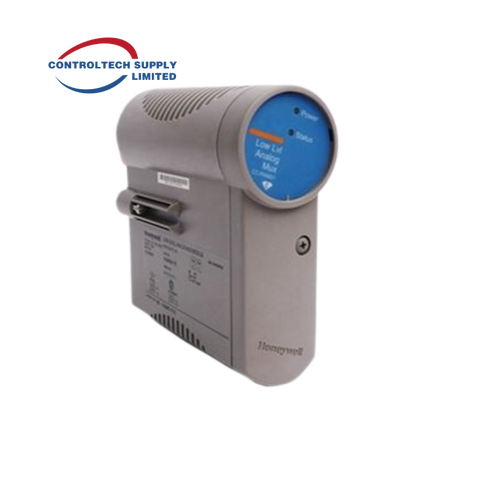

Honeywell 8C-TAIDB1 ANALOG INPUT IOTA Differential, Red, Coated

Honeywell 8C-TAIDB1 ANALOG INPUT IOTA Differential, Red, Coated

Brand: Honeywell
Product Type: Analog Input Module
Payment:T/T, Western Union
Shipping Port:Jinhua China
Lead Time:1-3 Working Days
Condition: Brand New And 100% Original
Warranty: 12 months


The Analog Input Module is designed to accept current inputs from transmitters and various sensing devices.


  • Extensive self-diagnostics for enhanced functionality and reliability.
  • Optional redundancy to ensure system reliability and availability.
  • No Open Wire Detection feature.
  • Support for both Single Ended and Differential Inputs.
  • HART-capable, enabling digital communication with field devices.
  • Fast loop scan capability for swift and efficient data acquisition.

Detailed Specifications - Analog Input with HART - Differential:

  • 8C-TAIDB1 Redundant, Coated 12" (IOTA Modules)

  • 8C-TAIDB1 Redundant, Uncoated 12"(IOTA Modules)

  • Input Type: Supports either single-ended or differential current/voltage inputs with one type of IOTA.

  • Input Channels: 16 Channels (All 16 Single Ended / Differential)

  • A/D Converter Resolution: 16 bits

  • Input Range: 1 to 5 V, 4-20 mA (through 250 Ω)

  • Voltage Rating: 24 VDC

  • Module Current Rating: 310 mA

  • Normal Mode Rejection Ratio at 60 Hz: 19 dB

  • Module Removal and Insertion Under Power: Supported

  • Operating Temperature: 0 to 60 ℃

  • Storage Temperature: -40 to 85 ℃

  • Normal Mode Filter Response: Single-pole RC, -3 dB @ 6.5 Hz

  • Crosstalk, DC to 60 Hz (channel-to-channel): -60 dB

  • Maximum Input Voltage: ± 30 Volts

  • Input Scan Rate: 50 ms

  • Hardware Accuracy: ± 0.075% of full-scale (23.5°± 2°C), ± 0.15% of full-scale (0 to 60°C)

  • Agency Certifications: Class I, Division 2, Group A, B, C, D; T4, Class I, Zone 2 AEx/Ex nA II C T4, Class I, Division 2, Group A, B, C, D; T4, Class I, Zone 2, Ex nA II C T4

  • Note: Each channel's 250-Ohm load resistor is connected to the input terminal through a wire jumper on the IOTA. The user should cut this jumper on channels to be used with voltage transmitters.
